10m AOC DAC Cable 40G QSFP+ To QSFP+ OM3 Active Optical Cable QSFP

Product Categories
CFOFC Communications Ltd.
Contact Now

10m AOC DAC Cable 40G QSFP+ To QSFP+ OM3 Active Optical Cable QSFP

Brand Name : CFOFC

Model Number : CFOFC- QSFP28 40G

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 3,000,000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Product name : 40G QSFP28Breakout Cables

Application : Telecommunications,FTTH FTTB FTTX Network,Network

Connector type : QSFP28 to QSFP28

Fiber : OM3

data rate : 40G

Length : 10m

Contact Now

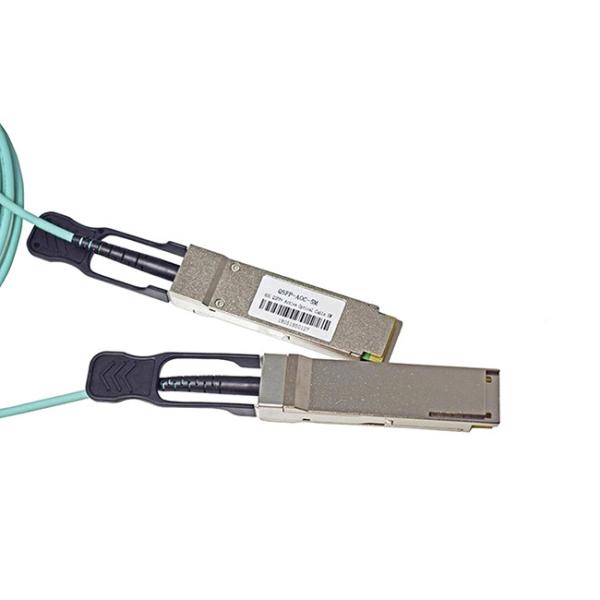

40G QSFP+ to QSFP+ active optical cable QSFP AOC Cable 10m OM3

Description of Active Optical Cable

QSFP to QSFP Active Optical Cables are a high performance, low power consumption, long reach interconnect solution supporting InfiniBand QDR/DDR/SDR,1.25G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.This QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s. And it is one kind of parallel transceiver which provides increased port density and total system cost savings.UNIFIBER 40G QSFP+ AOC active optic cables are designed for 40G Ethernet links reach up to 300m (OM3) or 400m (OM4) over Multi-Mode Fiber (MMF).

Specification of Active Optical Cable

Model No.DescriptionUnitCompatibility
QSFP-AOC-1M40G QSFP to QSFP AOC 1M, OM2/OM3PieceAll brands
QSFP-AOC-2M40G QSFP to QSFP AOC 2M, OM2/OM3PieceAll brands
QSFP-AOC-3M40G QSFP to QSFP AOC 3M, OM2/OM3PieceAll brands
QSFP-AOC-5M40G QSFP to QSFP AOC 5M, OM2/OM3PieceAll brands
QSFP-AOC-7M40G QSFP to QSFP AOC 7M, OM2/OM3PieceAll brands
QSFP-AOC-10M40G QSFP to QSFP AOC 10M, OM2/OM3PieceAll brands
QSFP-AOC-15M40G QSFP to QSFP AOC 15M, OM2/OM3PieceAll brands
QSFP-AOC-20M40G QSFP to QSFP AOC 20M, OM2/OM3PieceAll brands
Customized Length, OM2/OM3

Features of Active Optical Cable

Hot-pluggable QSFP+ form-factor connectors
4 channels full-duplex active optical cables
4x 850nm VCSEL array and PIN photo-detector array
Differential AC-coupled high-speed data interface
Compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4
Data rate up to 41.2Gbps
Length up to 300m over OM3 MMF
Power consumption < 1.5W per end
Operating case temperature range from 0°C to 70°C
3.3V power supply voltage
RoHS compliant (lead free)

Application of Active Optical Cable

40GBASE-SR4 Ethernet
InfiniBand 4xSDR/DDR/QDR
Data center network

Fiber Channel
InfiniBand FDR/EDR 100Gbs
Ethernet

10m AOC DAC Cable 40G QSFP+ To QSFP+ OM3 Active Optical Cable QSFP10m AOC DAC Cable 40G QSFP+ To QSFP+ OM3 Active Optical Cable QSFP10m AOC DAC Cable 40G QSFP+ To QSFP+ OM3 Active Optical Cable QSFP
The reason why Choose us:
1. On time delivery

2. Factory outlet
3. Customization
4. Large product inventory with massive production line
5. Product distribution involves multi-fields, dozens of countries including some developed countries.

FAQ

1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
