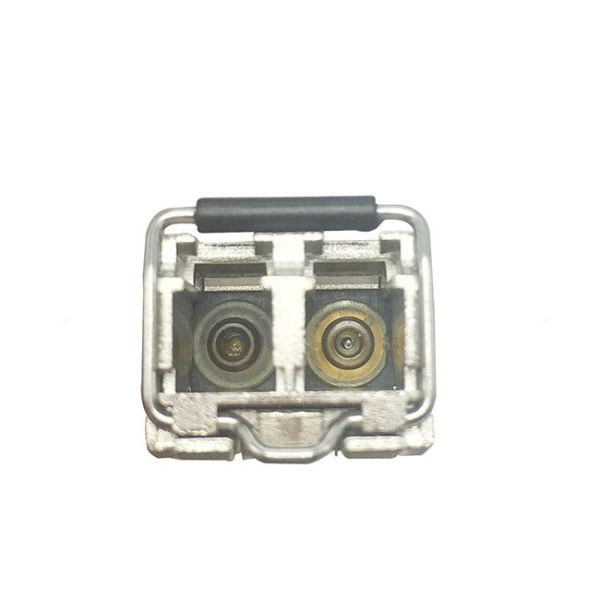

80km Fiber Optic Transceiver 10G SFP+ CWDM 1270nm-1610nm Dual LC Single Mode

Brand Name : CFOFC

Model Number : CFOFC-10g bidi sfp+ 80km

Certification : ISO9001/ REACH / ROHS

Place of Origin : Shenzhen, China

MOQ : 10Pcs

Price : Negotiable

Payment Terms : L/C, T/T,Paypal, Western Union

Supply Ability : 30,00000 pcs per month

Delivery Time : 5-8 work days

Packaging Details : Individual Pack , plus outer cartons

Product name : 10g cwdm sfp+ transceiver 80km

Application : Telecommunications,FTTH FTTB FTTX Network,Network

Connector type : LC

Data Rate : 10G/s

Wavelength : 1270-1610

Transmission Distance : 80km

Contact Now

Single Mode Fiber Optic Transceiver 10G SFP+ CWDM 80km 1270nm~1610nm Dual LC

Description of Optical Module

CWDM SFP+ transceiver is designed for SMF and operates at a nominal wavelength of CWDM wavelength. The transceiver consists of two sections: The transmitter section incorporates a DFB laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature,laser bias current, transmitted optical power, received optical power and transceiver supply voltage.

Specification of Optical Module

Data Rate distance wavelength LD PD Connector DDM
10G 40km CWDM(1270-1330nm) DFB PIN LC Y
10G 80km CWDM(1470-1610nm) EML APD LC Y

Features of Optical Module

Optical interface compliant to IEEE 802.3ae

Electrical interface compliant to SFF-8431

Specifications compliant with SFF 8472

Hot Pluggable

Low power consumption

All-metal housing for superior EMI performance

Single +3.3v power supply

Support Digital Diagnostic Monitoring Interface

Case operating temperature range: 0°C to 70°C

RoHS 6 compliant and lead free

Satisfy Class I safty requrement

Application of Optical Module

10GBASE Ethernet, Fiber Channel

High-speed Storage Area Networks, SAN Fiber Channel

Computer Cluster Cross-connect

Custom High-speed Data Pipes

80km Fiber Optic Transceiver 10G SFP+ CWDM 1270nm-1610nm Dual LC Single Mode80km Fiber Optic Transceiver 10G SFP+ CWDM 1270nm-1610nm Dual LC Single Mode80km Fiber Optic Transceiver 10G SFP+ CWDM 1270nm-1610nm Dual LC Single Mode

The reason why Choose us


1. On time delivery

2. Factory outlet

3. Large product inventory with massive production line
4. Quality guarantee
5. One to one special after-sales service


FAQ


1. Can I have a sample order of this product?
Yes, we welcome sample order for you to test and check the quality. Mixed samples are acceptable as well.

2. How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.

3. What's your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.

4. Are you factory direct?
As a professional Cable manufacturer, specialized in Fiber Optic Patch Cord, Fiber Optic PLC Splitter. Our products are mainly exported to Europe, South America, and some other countries and areas.

5. Is there any discount on the product?
We have several production promotion activities every month, welcome to inquire.
